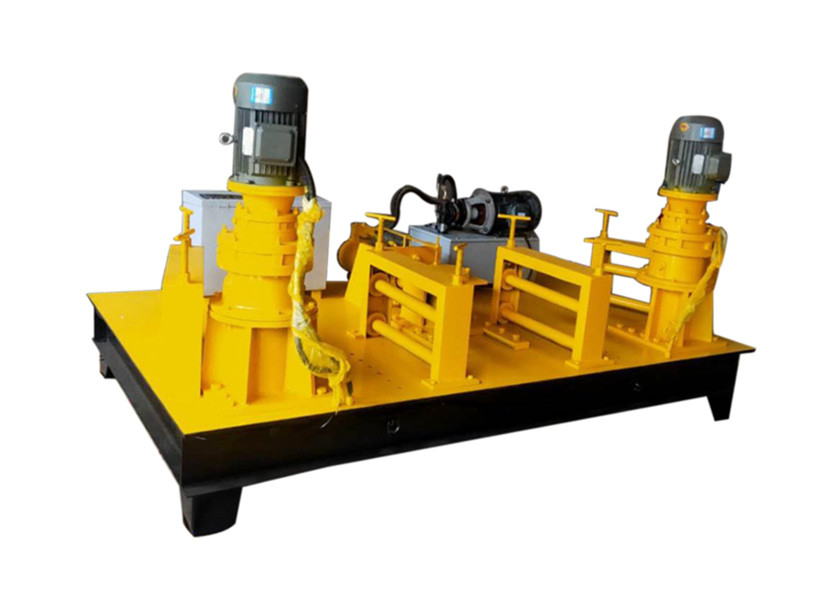

Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender

Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender

  • Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender
Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender
Product Details:
Place of Origin: China
Brand Name: Tytion
Certification: CE, SGS
Model Number: LWGJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case or others
Delivery Time: 8-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per month
Contact Now
Detailed Product Description
Name: CNC Bending Machine Application Area: I/H/U-steel
After Sales Service Year: 2 Years Official Certification: CE, ISO, FORM E
Driven Type: Electric Motor Electric Power: 7.5 Kw
High Light:

CNC I Beam Bending Machine

,

Full Hydraulic I Beam Bender

,

Yellow I Beam Bending Machine

Accurate Measurement Widely Used CNC Bending Machine New Technology



CNC Bending Machine



Features of CNC Bending Machine:

1. Control: CNC bending and arch machine has PLC program controller control, full hydraulic system automatic reading can be manually controlled or CNC control.
2. Operation: unlimited feeding, can be in or out, cylinder progress size automatic positioning without manual measurement, bending size automatic reading.
3. Safety: double automatic shutdown system, automatic shutdown when reaching the size, infrared brake system, automatic shutdown when no material.



Parameter of CNC Bending Machine:



Parameters/Name LWGJ-300 I-steel cold bending machine
Maximum bending area 250 cm2
Bending speed 6-6.2 m/min
Bending limit S=345 MPa
Specification of machine 25#
Working pressure of hydraulic system ≤16MPa
Hydraulic cylinder propulsion speed 1-10 mm/s
Hydraulic cylinder jacking force 50 T
Effective stroke of hydraulic cylinder 300mm
Rated oil pump pressure 16 Mpa
Reducer type 42#
Driving power 5.5*2
Totol power 18 kw
Diamension(L*W*H) 2800*1600*1800 mm
Weight 2350 KG



Pictures of CNC Bending Machine:



Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender 0

Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender 1

Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender 2Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender 3Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender 4Yellow CNC I Beam Bending Machine Full Hydraulic I Beam Bender 5
