adjustable pressure large output Screw Mortar Grout widely used
Screw Mortar Grout
Description Connect Flange Assembly of Screw Mortar Grout:
Connecting flange assembly of screw mortar grout is mainly composed of flange, coupling, thrust ball bearing, deep groove ball bearing, seal, seal ring, gland, oil pipe, such as parts, flange end connected to the reducer flange, one end connected to the hopper flange, reducer output shaft coupling have connection with power transmission function of the auger, Using booster thrust ball bearing structure can effectively carry worm and rubber stator axial force produced by extrusion, seal, seal shield have protective effect, prevent mud invasion, to protect the internal bearing, seal adopt national standard parts, reasonable structure, versatility, interchangeability, greatly improve wear resistance, durability, fast and convenient to replace. Flange is provided with external lubricating oil pipe, diameter 4mm, R1/8 tubing joint, leads to the outside of the pump body, can be convenient and fast to the bearing lubricating oil filling.
Parameters of Screw Mortar Grout:
| Model |
LBT2000 |
| Output |
2000-2500 L/H |
| Motor power |
4 kw |
| Sand particle size |
≤ 4 mm |
| Pressure |
2-4 Mpa(adjustable) |
| Hopper |
150 L |
Safety Precautions of Screw Mortar Grout:
1. During construction, the slurry pump and grouting hose should be fixed, and the grouting hose should be in a relaxed state;
2. After grouting, it is necessary to clean the slurry pump and grouting hose in time, and the switch is in the stop position, in time
3. At any time can not put the hand into the hopper or hard things into the conveyor screw operation;
4. Pay attention to environmental safety.

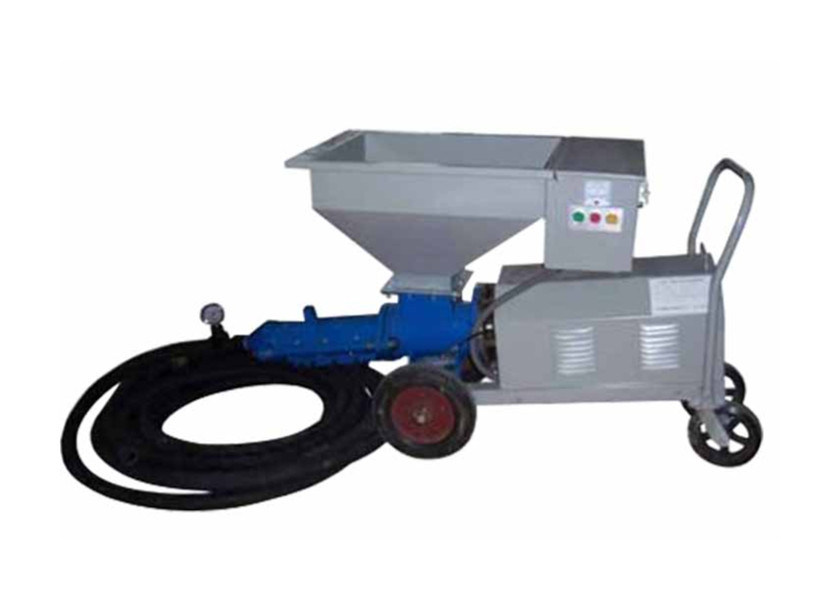

Pictures of Screw Mortar Grout:
